High-Level Design: CloudForge Enterprise Cloud Governance Platform

Property	Value
Version	4.0
Author	Liem Vo-Nguyen
Date	March 2026
Status	Active
LinkedIn	linkedin.com/in/liemvonguyen

Related Documents

Document	Description
Detailed Design Document (DDD)	Implementation-level technical specifications
Component Rationale	Technology selection with cost analysis
DR/BC Plan	Disaster Recovery and Business Continuity
Pitch Deck	Executive presentation
ADRs	Architecture Decision Records (ADR-001 through ADR-023)
Runbooks	Operational procedures (11 core runbooks)

---

1. Executive Summary

CloudForge is an enterprise cloud governance platform that provides:

• Self-service cloud resource provisioning with built-in governance guardrails
• Cloud Security Posture Management (CSPM) with multi-cloud aggregation
• Multi-framework compliance mapping (CIS, NIST, ISO, PCI-DSS, HIPAA, etc.)
• AI-powered risk analysis and toxic combination detection
• Attack path computation and visualization
• Automated remediation with rollback capabilities
• CI/CD security scanning integration (SonarQube, Checkov, Veracode)
• VCS integration (GitHub, GitLab, Azure DevOps)
• Identity and Zero Trust policy enforcement (Entra ID, Okta)
• FinOps cost management with budget alerting
• AI governance with embedded OPA policy engine

1.1 Runtime Scope: Current Portfolio vs Target Enterprise

This document mixes two intentionally different views:

• Current portfolio implementation: the public demo and the code in this repository. Today this runs as a lighter-weight deployment on Fly.io + Cloudflare Pages, uses the in-memory workflow engine provider, and focuses on the highest-signal implemented slices: posture management, attack paths, remediation safety, compliance, FinOps, AI governance, and the self-service portal.
• Target enterprise architecture: the self-managed, multi-region, multi-cloud deployment model shown for production design discussions. This includes the Temporal-based orchestration target, multi-region failover topology, and heavier operational isolation patterns that are documented here but not fully wired into the public demo.

Unless a section explicitly says otherwise, implementation details in internal/, cmd/, pkg/, and the live demo should be treated as the source of truth for current-state behavior.

1.2 Business Drivers

• Enable self-service infrastructure provisioning without bypassing security controls
• Enforce policy-as-code guardrails across multi-cloud environments (AWS, Azure, GCP)
• Integrate with enterprise GRC tools (RSA Archer, ServiceNow) for exception management
• Provide comprehensive compliance mapping across 20+ frameworks
• AI-powered contextual risk scoring beyond static severity
• CI/CD pipeline security with SAST/DAST/IaC scanning
• Reduce mean time to remediation through automated security fixes
• Control cloud costs with multi-cloud FinOps aggregation and budget alerting

---

2. Architecture Overview

2.1 Component Summary

Component	Purpose	Technology
Portal Layer	Self-service UI for requests and dashboards	React 19 / Vite 7 / Tailwind CSS v4 / shadcn/ui
REST API	HTTP API server with RBAC and rate limiting	Go 1.25 / gorilla/mux
Orchestration Engine	Workflow management for approvals and provisioning	In-memory provider today; Temporal target
Policy Engine	Evaluate requests against governance rules (dual-OPA)	OPA / Rego (external server + embedded Go library)
AI Risk Analyzer	Contextual risk scoring, toxic combo detection	Claude Opus 4.6 / GPT-4 / AWS Bedrock
Compliance Engine	Multi-framework compliance mapping and assessment	Go
Posture Management	Multi-cloud finding normalization and enrichment	Go (AWS/Azure/GCP SDK clients)
Graph Query Engine	Multi-hop graph traversal (zero-ETL over PostgreSQL)	PuppyGraph Enterprise (Gremlin / openCypher)
Attack Path Engine	In-memory BFS graph computation	Go + ReactFlow (frontend)
Toxic Combo Detector	4-pattern toxic combination detection	Go
Threat Intelligence	EPSS, CISA KEV, GreyNoise enrichment	Go (HTTP clients with caching)
Remediation Dispatcher	Automated security fix execution with rollback	Go (18 handlers, 12 domains, 3 tiers)
FinOps Aggregator	Multi-cloud cost aggregation and budget alerting	Go (AWS/Azure/GCP cost APIs)
WAF Module	Golden templates and compliance scanning	Go
Container Security	Image scanning, admission control	Go
Secrets Management	Multi-cloud secrets with rotation lifecycle	Go
CI/CD Security	Pipeline and dependency scanning	Go
Identity Module	Zero Trust policy enforcement, RBAC	Go (Okta/Entra ID)
AI Governance	Embedded OPA for AI agent tool/data-flow control	Go + OPA library
VCS Integration	GitHub/GitLab/Azure DevOps APIs	Go
SAST Integration	SonarQube, Veracode, Checkov	Go
GRC Integration	Archer, ServiceNow ticketing	Go (provider pattern)

---

3. Compliance Framework Engine

3.1 Supported Frameworks

Sector	Frameworks
General	CIS Benchmarks v8, NIST CSF 2.0, ISO 27001:2022, ISO 27017
Cloud	AWS Security Best Practices, GCP CIS v2, Azure MCSB
Healthcare	HIPAA Security Rule, HITRUST CSF v11
Finance	PCI-DSS 4.0, SOX ITGC, GLBA Safeguards Rule, FFIEC
Government	NIST 800-53 Rev 5, FedRAMP, DISA STIGs, CMMC
AI/ML	NIST AI RMF 1.0, ISO 42001:2023
Automotive	ISO 21434, UN ECE R155, TISAX

3.2 Finding Schema

Comprehensive finding schema including:

Field Category	Key Fields
Identification	ID, Source, Type, Title, Description
Resource	ResourceType, ResourceID, Platform, CloudProvider, Region
On-Prem	Hostname, SerialNumber, IPAddress, AssetTag
Environment	EnvironmentType (prod/non-prod), AccountID, VPC
Severity	StaticSeverity, AIRiskScore, AIRiskLevel, CVSS, EPSS
Vulnerability	CVEs (with hyperlinks), CWEs, ExploitAvailable
Compliance	ComplianceMappings (framework, control, section, URL)
Ownership	TechnicalContact, ServiceName, LineOfBusiness, Team
Workflow	Status, FalsePositive, TicketID, DueDate, SLABreachDate
Deduplication	DeduplicationKey, CanonicalRuleID, RelatedRules
Attack Path	AttackPathContext, BlastRadius, ToxicComboFlag, MITRETactic

3.3 AI-Powered Analysis

• Contextual Risk Scoring: Environment, exploitability, blast radius
• Toxic Combination Detection: 4 patterns (public storage, IAM+noMFA, internet+CVE, SG+DB)
• Misconfiguration Analysis: Root cause, impact, remediation steps
• Vulnerability Analysis: Exploit likelihood, attack surface, priority
• Blast Radius Computation: Account/VPC/transit reachability analysis
• False Positive/Negative Detection: 3 FP suppression + 3 FN escalation rules

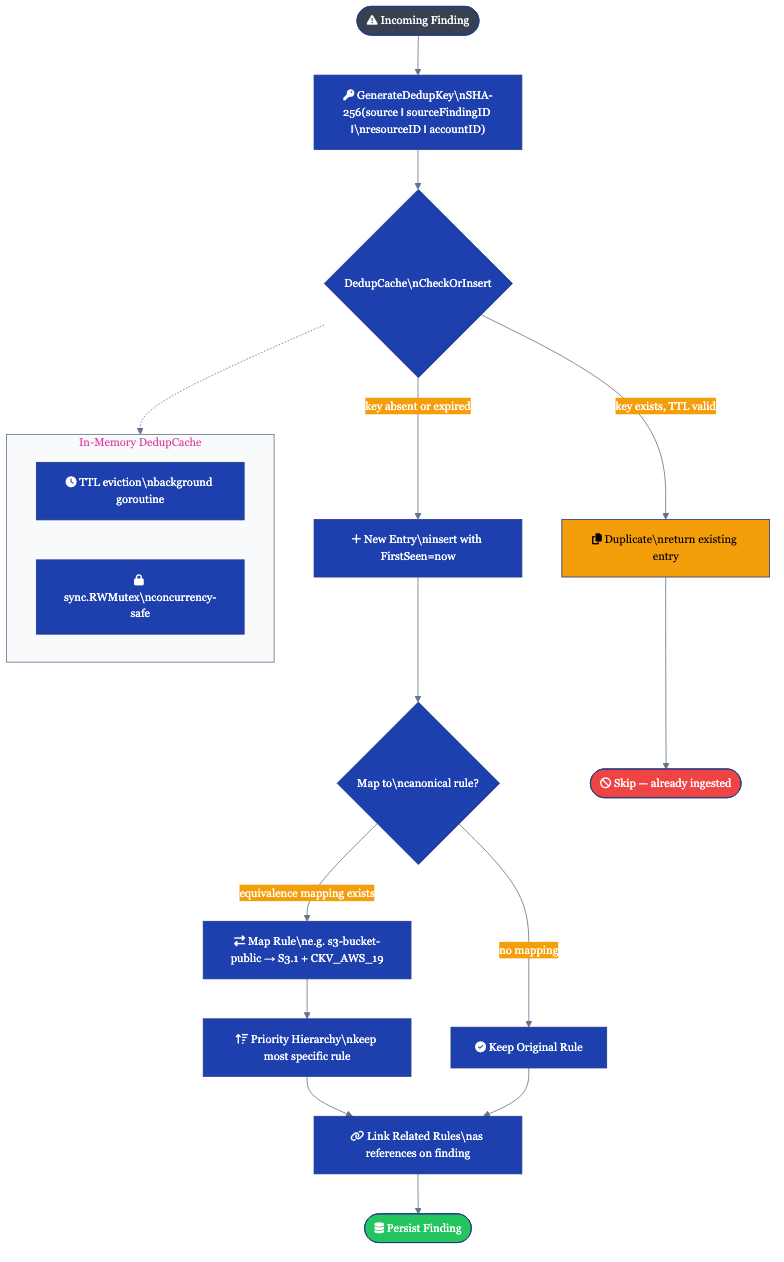

3.4 Deduplication Logic

When a finding is captured by multiple rules:

1. Generate deduplication key from resource + rule + finding details
2. Map rule to canonical rule using equivalence mappings
3. Keep most specific/relevant rule based on priority hierarchy
4. Link related rules as references

---

4. CI/CD Security Module

4.1 VCS Providers

Provider	Features
GitHub/GitHub Enterprise	Repos, PRs, Actions, Dependabot alerts, Check runs
GitLab	Projects, MRs, Pipelines, Vulnerability findings
Azure DevOps	Repos, PRs, Pipelines, Advanced Security alerts

4.2 SAST/DAST Tools

Tool	Type	Integration
SonarQube/SonarCloud	SAST	API-based project/issue retrieval
Checkov	IaC	CLI execution with JSON parsing
Veracode	SAST/DAST	HMAC-authenticated API

---

5. Identity and Zero Trust Module

5.1 Identity Providers

Provider	Capabilities
Microsoft Entra ID	User/Group management, Risk scoring, PIM integration
Okta	User/Group management, Role assignment

5.2 RBAC Model

Four backend roles enforce API access control:

Role	Description	Scope
Admin	Tenant administrator	Full access: all endpoints, user management, audit log
Operator	SecOps team	Read/update: findings, remediations, compliance, exceptions
Requester	End user	Read + submit: own exceptions, catalog browsing
Viewer	Read-only observer (rank 0)	GET only: /findings, /compliance/frameworks, /agents + traces

See ADR-006 for the full RBAC design. See ADR-013 for resource-scoped RBAC (ABAC) with ResourceScope in JWT claims.

5.3 Zero Trust Policies

• Block high-risk sign-ins
• Require MFA for sensitive operations
• Device compliance verification
• Contextual access decisions

---

6. Remediation Dispatcher

6.1 Architecture

The remediation dispatcher provides automated security fix execution with a tiered execution model:

Tier	Handler Types	Concurrency	Timeout
T1 (Auto-Safe)	Network ACLs, Storage ACLs	10 parallel	30s
T2 (Verify)	Compute config, IAM key rotation	5 parallel	120s
T3 (Change Window)	OS patching, key rotation	2 parallel	600s

6.2 Handlers (18 across 12 domains)

Domain	Handler	Tier	Cloud Provider
Network	BlockPublicSSH	T1	AWS (EC2 Security Groups)
Network	BlockOpenPort	T1	AWS (EC2 Security Groups)
Network	RestrictDefaultSG	T1	AWS (EC2 Security Groups)
Network	EnforceSSL	T2	AWS (RDS/ELB)
Storage	BlockPublicS3	T1	AWS (S3)
Compute	EnforceIMDSv2	T2	AWS (EC2)
Identity	RotateIAMKeys	T2	AWS (IAM)
Identity	RestrictExcessivePerms	T2	AWS (IAM)
Security Services	GuardDutyEnablement	T1	AWS (GuardDuty)
Security Services	AzureDefender (stub)	T1	Azure (Defender for Storage)
Monitoring	EnableCloudTrail	T2	AWS (CloudTrail)
Monitoring	EnableGCPAuditLogs	T2	GCP (Cloud Audit Logs)
Config	EnableAWSConfig	T2	AWS (Config)
Container	DisablePrivilegedPods	T2	Kubernetes
Database	EnableRDSEncryption	T3	AWS (RDS)
Encryption	RotateKMSKey	T3	AWS (KMS)
Secrets	RotateExposedSecret (manual)	T3	Multi-cloud
Patching	OSPatch (query-only)	T3	AWS (SSM)

6.3 Rollback

State snapshots are stored in S3/GCS before every remediation. Rollback window: 48 hours.

See ADR-009 for the full architecture decision.

---

7. Attack Path Analysis

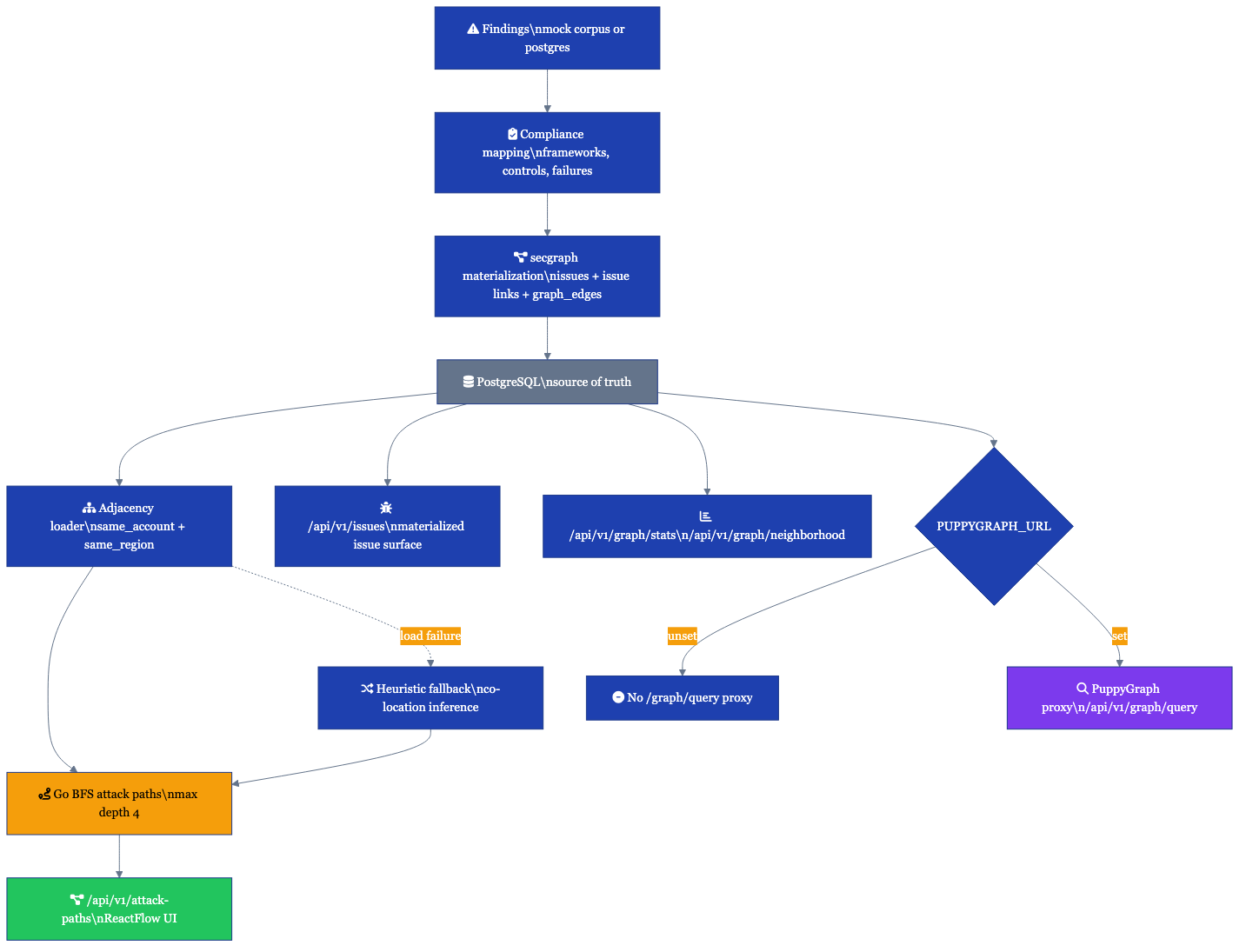

Current-state runtime detail for attack-path computation, secgraph materialization, and the optional PuppyGraph query path:

Diagram source | Diagrams index

7.1 Computation Engine

CloudForge computes attack paths with an in-memory BFS engine in the API tier:

• Nodes: Findings projected onto resource-centric attack-path nodes
• Edges: Explicit secgraph resource adjacency from graph_edges when the database is configured (same_account, same_region); heuristic co-location remains the fallback when adjacency cannot be loaded
• Traversal: BFS from entry points (internet-exposed / exploitable) to targets (data stores, secrets, encryption assets)
• Max depth: 4 hops
• Large-corpus mode: deferred/sampled execution is used on constrained Fly runtime profiles to avoid cold-start memory spikes
• Rust acceleration path: the Rust FFI bridge and benchmarks exist, but the active server request path still runs the Go BFS engine today

7.2 Security Graph (secgraph)

The current implementation is backed by the internal/secgraph package and the startup / incremental sync path in cmd/server/secgraph_sync.go. This is the live graph-native issue surface used by the operator APIs today.

• System of record: PostgreSQL stores frameworks, controls, control evaluations, materialized issues, issue-finding links, and explicit graph_edges
• Node taxonomy: finding, resource, control, issue, account, compliance_framework
• Edge taxonomy: affects, violates, maps_to, evaluated_by, materializes_to, belongs_to, same_account, same_region
• Materialization flow: findings are mapped through the compliance engine, converted into control failures, deduplicated into issues by (control_id, resource_id, tenant_id), then persisted with graph edges
• Scoring and routing: blast radius can use secgraph adjacency when available, and issue records can be auto-assigned / auto-ticketed through the existing integration routing layer
• Always-available queries: when AEGIS_DATABASE_URL is configured, the Postgres CTE querier exposes typed neighborhood and graph stats endpoints without requiring PuppyGraph

See ADR-020 for the full data model and migration plan.

7.3 Graph Query Engine (PuppyGraph)

For richer multi-hop traversal queries beyond the in-process BFS engine (for example, operator-driven graph exploration or investigation queries), CloudForge integrates PuppyGraph Enterprise as an optional zero-ETL graph query layer over PostgreSQL. PuppyGraph supports both Gremlin and openCypher and is exposed through POST /api/v1/graph/query when PUPPYGRAPH_URL is configured. When PuppyGraph is absent or unavailable, the structured Postgres querier and the Go attack-path BFS engine remain the source of truth for current runtime behavior.

See ADR-015 for the graph query layer decision.

7.4 API

Endpoint	Method	Description
/api/v1/attack-paths	GET	Paginated attack paths (default 20/page, max 100)
/api/v1/attack-paths/{id}	GET	Single path with full finding details
/api/v1/attack-paths/stats	GET	Coverage stats (findings in paths vs isolated)
/api/v1/issues	GET	Paginated graph-native security issues
/api/v1/issues/{id}	GET / PATCH	Issue detail and operator status updates
/api/v1/issues/stats	GET	Aggregate issue counts by severity/status
/api/v1/graph/neighborhood/{nodeType}/{nodeId}	GET	Typed subgraph within N hops (Postgres CTE querier)
/api/v1/graph/stats	GET	Vertex and edge counts grouped by type
/api/v1/graph/query	POST	Gremlin / openCypher proxy to PuppyGraph (feature-flagged)

See ADR-008 for the architecture decision.

---

8. FinOps Cost Management

8.1 Components

Component	Package	Description
Cost Aggregator	internal/finops/aggregator/	AWS/Azure/GCP cost API clients
Anomaly Detection	internal/finops/anomaly/	ML-based spend anomaly alerting
Chargeback Engine	internal/finops/chargeback/	Tag-based cost allocation + CSV export
Budget Monitor	internal/finops/alerting/	Slack + PagerDuty budget alerts
Cost Estimation	internal/finops/estimation.go	21-resource lookup table
Reporter	internal/finops/reporter/	Showback/chargeback reports

8.2 Budget Alerting

Budget alerts are sent via two channels:

• Slack: Block Kit formatted messages
• PagerDuty: Events API v2 integration

See ADR-010 for the architecture decision.

---

9. Deployment Architecture

This section describes the target enterprise / self-managed deployment architecture, not the current public portfolio runtime. The active public demo uses Fly.io for the API tier and Cloudflare Pages for the frontend; the multi-cloud topology below is the forward-state reference model.

9.1 Multi-Cloud Support

9.2 Terraform Modules

Module	Path	Providers
Compute	deploy/terraform/modules/compute/	Cloud Run, ECS Fargate, Azure Container Apps
Database	deploy/terraform/modules/database/	Cloud SQL, RDS, Azure PostgreSQL
Redis	deploy/terraform/modules/redis/	Memorystore, ElastiCache, Azure Cache
Network	deploy/terraform/modules/network/	AWS VPC, Azure VNet, GCP VPC
IAM	deploy/terraform/modules/iam/	GCP SA, AWS IAM Roles, Azure Managed Identity
Monitoring	deploy/terraform/modules/monitoring/	Cloud Monitoring, CloudWatch, Azure Monitor
Secrets	deploy/terraform/modules/secrets/	GCP Secret Manager, AWS Secrets Manager, Azure Key Vault
PuppyGraph	deploy/terraform/modules/puppygraph/	AWS EC2 (POC)

Environments: dev, staging, prod in deploy/terraform/environments/.

9.3 High Availability (Target State)

• Active-Active across 2+ regions
• Database replication with automatic failover
• State synchronization via distributed consensus
• < 1 minute RTO for compute failures

---

10. Security Considerations

10.1 Authentication & Authorization

• JWT authentication (HS256/RS256, JWKS caching)
• OIDC federation (Okta, Entra ID) with mock fallback for development
• RBAC middleware (Admin, Operator, Requester roles)
• API rate limiting (Redis-backed, tier-based: anonymous/free/basic/professional/enterprise)
• OIDC/WIF for cloud provider access

10.2 Data Protection

• Encryption at rest (AES-256)
• Encryption in transit (TLS 1.3)
• Secrets in cloud-native vaults (AWS Secrets Manager, Azure Key Vault, GCP Secret Manager)

---

11. Monitoring & Observability

11.1 Telemetry Stack

Component	Tool	Purpose
Metrics	Prometheus + Grafana	System and application metrics
Logging	Structured JSON (zap) to ELK/Splunk	Centralized log aggregation
Tracing	OpenTelemetry	Distributed tracing across services
Alerting	PagerDuty/Opsgenie	Incident notification

11.2 Key Metrics

Metric	Description	Alert Threshold
aegis_http_requests_total	Total HTTP requests by method/path/status	-
aegis_http_request_duration_seconds	Request latency histogram	P99 > 500ms
aegis_findings_processed_total	Findings processed by source/type/severity	-
aegis_ai_analysis_duration_seconds	AI analysis duration	P99 > 30s
aegis_health_status	Component health (1=healthy, 0=unhealthy)	Any 0
aegis_rate_limit_hits_total	Rate limit violations	>100/min

11.3 Health Endpoints

Endpoint	Purpose	Response
/health	Detailed health check	All components with latency
/healthz	Kubernetes liveness probe	{"status": "alive"}
/ready	Kubernetes readiness probe	Full component health status
/metrics	Prometheus metrics	Prometheus format

11.4 Troubleshooting

Built-in troubleshooting capabilities provide remediation suggestions for common issues:

• Database connection failures: Connection pooling, credential verification
• Redis connection issues: Endpoint verification, memory analysis
• AI provider timeouts: Fallback provider activation, rate limit handling
• High memory/CPU usage: Profiling endpoints at /debug/pprof/

See Technical Runbooks for detailed operational procedures.

---

12. API Reference

12.1 Core Endpoints

Endpoint	Method	RBAC	Description
/api/v1/findings	GET	operator, admin	List findings
/api/v1/findings/{id}	GET	operator, admin	Get finding detail
/api/v1/findings/{id}/enrich	POST	operator, admin	Enrich finding with AI
/api/v1/compliance/frameworks	GET	operator, admin	List available frameworks
/api/v1/attack-paths	GET	operator, admin	List attack paths (paginated)
/api/v1/attack-paths/stats	GET	operator, admin	Attack path coverage stats
/api/v1/attack-paths/{id}	GET	operator, admin	Get attack path detail
/api/v1/remediations	GET	operator, admin	List remediations
/api/v1/remediations/{id}	GET	operator, admin	Get remediation detail
/api/v1/remediations/{id}/execute	POST	admin	Execute remediation
/api/v1/costs/summary	GET	operator, admin	Get cost summary
/api/v1/exceptions	POST	admin	Create exception
/api/v1/exceptions/{id}	GET	operator, admin	Get exception
/api/v1/exceptions/mine	GET	requester+	Get my exceptions
/api/v1/exceptions/pending	GET	operator, admin	Pending approvals
/api/v1/exceptions/expiring	GET	operator, admin	Expiring exceptions
/api/v1/exceptions/{id}/approve	POST	admin	Submit approval
/api/v1/validate/exception	POST	operator, admin	Validate exception against policy
/api/v1/agents	GET	operator, admin	List AI agents
/api/v1/agents/{id}	GET	operator, admin	Get agent detail
/api/v1/agents/{id}/traces	GET	operator, admin	Get agent traces
/api/v1/audit-log	GET	admin	List audit log
/api/v1/users	GET	admin	List users
/api/v1/catalog/modules	GET	operator, admin	List catalog modules
/api/v1/policies	GET	operator, admin	List policies
/api/v1/workflows	GET	operator, admin	List workflows
/api/v1/workflows/{id}	GET	operator, admin	Get workflow
/api/v1/workflows/{id}/approve	POST	admin	Approve workflow
/api/v1/container/scan	GET	operator, admin	Scan container
/api/v1/container/admission	GET	operator, admin	Check admission
/api/v1/secrets	GET	operator, admin	List secrets
/api/v1/secrets/scan	POST	operator, admin	Scan for secrets (content in request body)
/api/v1/secrets/{path}	GET	operator, admin	Get secret
/api/v1/waf/templates	GET	operator, admin	List WAF templates
/api/v1/waf/compliance/{templateId}	GET	operator, admin	Validate WAF compliance
/api/v1/identity/users	GET	operator, admin	List identity users
/api/v1/identity/users/{id}/risk	GET	operator, admin	Get user risk score
/api/v1/ai/nlq	POST	operator, admin	Natural language query
/api/v1/containers	GET	operator, admin	Container security topology
/api/v1/ai/usage	GET	admin	AI budget status (monthly spend vs cap)

---

13. Data Ingestion Pipeline

13.1 Architecture

The ingestion subsystem normalizes findings from multiple cloud security scanners into a canonical format and deduplicates them before persistence.

13.2 Scanner Adapters

Each scanner implements the ScannerAdapter interface (Parse(ctx, data) → []NormalizedFinding):

Adapter	Source	Severity Resolution
ProwlerAdapter	Prowler JSON	Vendor severity via normalizeSeverity()
TrivyAdapter	Trivy JSON	Vendor severity via normalizeSeverity()
AWSConfigAdapter	AWS Config rules	Heuristic (rule name keywords: "root-account"/"mfa" → CRITICAL)

Severity is canonicalized to CRITICAL/HIGH/MEDIUM/LOW. INFORMATIONAL findings are intentionally dropped.

13.3 Deduplication

Diagram source | Diagrams index

In-memory SHA-256 keyed cache with TTL-based eviction:

• Key: SHA-256 of source \x00 sourceFindingID \x00 resourceID \x00 accountID (null-byte delimiters prevent field-split collisions)
• Atomic check-and-insert: CheckOrInsert() acquires a write lock and returns both duplicate status and existing entry
• Background eviction: goroutine on configurable interval, cancelled via context

---

14. Ticket Integration System

14.1 Provider Architecture

Remediation workflows route findings to external ticket/project management systems via the TicketProvider interface:

Provider	Auth	Description Format	ID Validation
Jira	Basic (API token)	Atlassian Document Format (ADF)	^[A-Z][A-Z0-9_]+-\d+$
Asana	Bearer (PAT)	Plain text	^\d+$
Azure DevOps	PAT	HTML (escaped)	^\d+$
Mock	None	In-memory	Any

All REST clients implement exponential backoff with max 3 retries on 429/5xx responses. Configuration loaded from environment variables via ConfigFromEnv().

14.2 Risk-Aware Routing

The RoutingEngine maps finding severity and attack graph signals to ticket priority and SLA:

Input Condition	Priority	Team	SLA
CRITICAL + choke-point	Urgent	incident-response	4 hours
CRITICAL	Urgent	security-ops	24 hours
HIGH	High	security-ops	72 hours
MEDIUM	Normal	platform-eng	7 days
LOW (fallback)	Low	backlog	30 days

Routing rules are first-match-wins with a configurable rule set (RoutingRule with match function + decision).

---

15. Webhook Delivery System

15.1 Architecture

Outbound webhook engine delivers CloudForge events to registered HTTP endpoints with HMAC-SHA256 signing.

15.2 Event Types

Event Type	Trigger
finding.created	New finding ingested
finding.resolved	Finding marked resolved
compliance.drift	Compliance posture change
attack_path.new	New attack path discovered
exception.approved	Exception request approved
deploy.preview	Deploy preview ready

Endpoints subscribe to specific event types or receive all events (empty filter = all).

15.3 Security

• HMAC signing: X-Aegis-Signature header with SHA-256 HMAC when endpoint has a secret
• SSRF protection (2-layer): (1) URL validation at registration rejects non-HTTPS, private IPs, localhost, metadata endpoints; (2) safeDialContext() rejects private/link-local IPs after DNS resolution (DNS rebinding defense)
• SA-106: HTTPS-only enforcement for webhook URLs

15.4 Delivery

Asynchronous fan-out: DeliverAsync() spawns goroutines per matching endpoint. Each delivery attempt is tracked with HTTP status code and duration. HTTP client timeout: 10 seconds.

---

16. Integrated Operations Terminal

16.1 Architecture

WebSocket-based interactive terminal for running read-only cloud CLI commands from the browser UI.

16.2 Security Controls

Control	Implementation
Authentication	Two-phase ticket system (SA-002): JWT → 60s nonce → WS upgrade
Authorization	RBAC: operator or admin only
Command whitelist	Read-only cloud CLI subcommands only (aws, gcloud, az, kubectl, terraform, trivy)
Shell injection	Metacharacter rejection (|;&$\><(){}!#\n\r`) before parsing
Dangerous flags	Blocks --endpoint-url, --profile, --impersonate-service-account
Environment	safeEnv() strips all env vars except PATH, HOME=/tmp, TERM
Limits	30s timeout, 512KB output, 4KB message, 2 sessions/user, 5min idle
Audit	All connect/execute/denied events logged via audit.AuditLogger
Mock fallback	Returns realistic demo output when binary not on PATH

---

17. Resource Query Language (RQL)

17.1 Grammar

Hand-written lexer and recursive-descent parser for filtering findings and resources:

query      = condition { ("AND" | "OR") condition }
condition  = field operator value
field      = identifier { "." identifier }
operator   = "=" | "!=" | ">" | ">=" | "<" | "<="
value      = quoted_string | unquoted_word

17.2 Evaluation

• Field access: Decoupled via FieldAccessor function (dependency injection)
• Precedence: Left-to-right, AND binds tighter than OR. No parenthesized grouping.
• String comparison: Case-insensitive for = and !=
• Numeric comparison: Via strconv.ParseFloat for >, >=, <, <=
• Ordered fields: Inverted comparison for severity-like fields (CRITICAL=1 < HIGH=2), so severity >= HIGH matches CRITICAL and HIGH

---

18. Attack Surface Management

18.1 Architecture

External-facing asset discovery that scans domains for hosts, services, ports, and TLS certificates via the ASMScanner interface.

18.2 Asset Model

Component	Fields
Asset	Hostname, IP, Services, Certificates, FirstSeen, LastSeen
ExposedService	Port, Protocol (HTTP/HTTPS/SSH/DNS/SMTP/FTP), Banner, TLS flag
Certificate	Subject, Issuer, NotBefore, NotAfter, SANs

Current implementation provides a deterministic mock scanner (SHA-256 domain seed for reproducible demo data). Real scanner implementations plug in behind the same ASMScanner interface.

---

19. Multi-Tenancy

19.1 Tenant Resolution

Request-scoped tenant resolution via middleware with a 3-level cascade:

Priority	Source	Restriction
1 (highest)	JWT tenant_id claim	Any authenticated user
2	X-Tenant-ID header	Admin role only
3	Subdomain extraction from Host header	Any request

When no tenant is resolved, defaults to ("default", "") for single-tenant backward compatibility. nil store disables multi-tenancy (middleware becomes a no-op).

19.2 Tenant Configuration

Per-tenant configuration includes:

Area	Config
Branding	CompanyName, ProductName, LogoPath, PrimaryColor, AccentColor
Auth	OIDC provider (okta/entra_id/auth0/mock), Issuer, ClientID, Audience
Modules	Enabled feature modules
Rate Limits	RequestsPerMinute, BurstSize

In-memory store (Phase 3 prototype). Postgres-backed store planned for Phase 4.

---

20. AI Governance

20.1 Architecture

Agent governance framework with in-process embedded OPA policy engine (microsecond-level evaluation, not HTTP sidecar). Provides agent registry, observability tracing, threat modeling (STRIDE + MITRE ATLAS), and maturity assessment.

20.2 Policy Engine

Two base policies embedded as Go constants:

Policy	Controls
BaseToolAccessPolicy	Tool allowlist/blocklist, rate limiting, forbidden parameter patterns
BaseDataFlowPolicy	Classification-based destination control, source restrictions, PII redaction

Policies are compiled at load time via rego.PreparedEvalQuery for sub-millisecond evaluation. Returns structured Decision with Allow, Reasons, Violations, and EvalTimeUs.

20.3 Observability Model

Component	Purpose
AgentTrace	Full execution trace per agent invocation
Span	Individual operation (types: llm, retrieval, tool, chain, agent, policy)
SecuritySignal	Injection attempts, data exfiltration, tool abuse, privilege escalation
TraceMetrics	Aggregated performance and cost metrics

LLM spans track token counts and cost. Retrieval spans track vector similarity scores. Tool spans include inline policy decisions.

---

21. Audit System

21.1 Architecture

Tamper-evident, append-only audit logging with SHA-256 integrity hashes and multiple backend support.

21.2 Event Taxonomy

Domain.Verb format across 12 domains:

Domain	Example Actions
exception	create, approve, reject, expire, revoke
finding	create, update, remediate, suppress
remediation	execute, rollback
terminal	connect, execute, denied
agent	invoke, complete, fail
deploy_preview	create, promote
user	login, logout, role_change
secret	rotate, access, scan

21.3 Integrity

computeHash() produces SHA-256 of all content fields with null-byte delimiters. Stored as IntegrityHash on every AuditEntry. Postgres backend includes automatic tenant_id scoping via tenant.IDFromContext().

---

22. GRC Integration

22.1 Provider Architecture

Policy exception lifecycle management via the GRCProvider interface (8 methods). Factory pattern (NewProvider(Config)) creates the appropriate backend:

Provider	Backend	Status
Memory	In-memory map	Demo/test
Postgres	PostgreSQL	Self-hosted production
ServiceNow	ServiceNow GRC REST API	Enterprise
Archer	RSA Archer REST API	Stub (documented)

22.2 Exception Lifecycle

Approval chain: multi-level (SECURITY_LEAD → GRC_ANALYST → CISO). Empty approval chain does NOT auto-approve. ValidateException() is the integration point with the policy engine — called before provisioning.

22.3 Security

• Credentials loaded from environment variables at init (never stored in config structs)
• ServiceNow query injection prevention: snowSafeInput regex ^[a-zA-Z0-9._@\-]+$ + URL encoding
• ServiceNow OAuth token caching with double-check locking pattern
• All HTTP response bodies limited to 1MB via io.LimitReader
• Postgres queries use parameterized placeholders ($N) and pq.Array() for batch operations
• All Postgres queries include tenant_id scoping

See ADR-007 for the architecture decision.

---

Appendix A: Technology Stack

Category	Technology
Language	Go 1.25
API Framework	gorilla/mux
Frontend	React 19 / Vite 7 / Tailwind CSS v4 / shadcn/ui
Database	PostgreSQL 16
Cache	Redis
Orchestration	Temporal
Policy Engine	OPA / Rego
AI	Anthropic Claude Opus 4.6, OpenAI GPT-4, AWS Bedrock (production enrichment)
IaC	Terraform
Container Runtime	Kubernetes (EKS/AKS/GKE)
Observability	OpenTelemetry, Prometheus, zap
Identity	Okta, Microsoft Entra ID (OIDC)
Deployment	Cloudflare Pages (frontend), Fly.io (backend)

---

Appendix B: Diagram Formats

Note on LucidChart Import: Mermaid diagrams are rendered as static images when imported to LucidChart. For editable diagrams:

1. Recommended: Create directly in LucidChart or use draw.io
2. Export: Use draw.io XML format for cross-platform compatibility
3. Alternative: Use PlantUML with LucidChart import extension

Architecture diagrams in this document use Mermaid for GitHub rendering and can be recreated in LucidChart for presentation purposes.

---

Document History

Version	Date	Author	Changes
4.0	March 2026	L. Vo-Nguyen	Expanded from 12 to 22 sections: added Data Ingestion (13), Ticket Integration (14), Webhooks (15), Terminal (16), RQL (17), ASM (18), Multi-Tenancy (19), AI Governance (20), Audit (21), GRC (22)
3.1	March 2026	L. Vo-Nguyen	Added Viewer role to RBAC table, updated ADR count (009-014), added POST /api/v1/ai/nlq + GET /api/v1/containers + GET /api/v1/ai/usage to API reference, changed /secrets/scan from GET to POST
3.0	March 2026	L. Vo-Nguyen	Updated tech stack (Go 1.25, gorilla/mux, React 19), added remediation/attack path/FinOps/CSPM sections, full API reference from routes.go, corrected RBAC model, added ADR cross-references
2.0	January 2026	L. Vo-Nguyen	Architecture overview, compliance engine, CI/CD, identity, deployment
1.0	January 2026	L. Vo-Nguyen	Initial HLD
