Architecture Diagrams
Visual reference for CloudForge system architecture and data flows.
Current-state portfolio diagrams and enterprise target/reference diagrams intentionally coexist here. The active public portfolio deployment is lighter than the self-managed multi-region enterprise references.

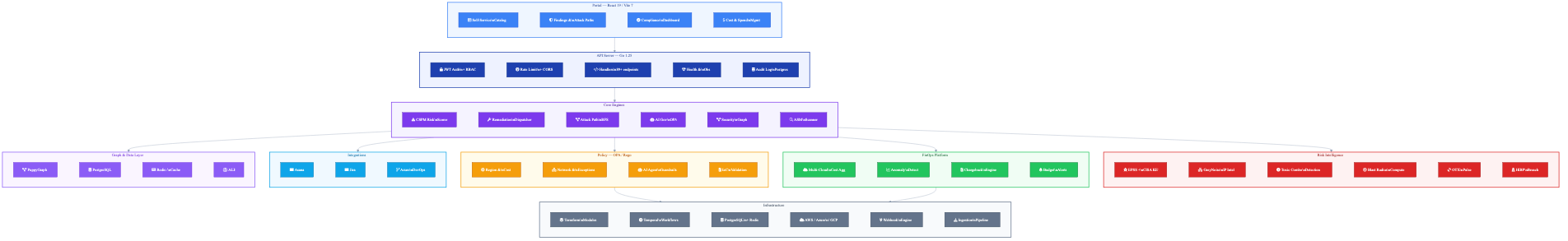

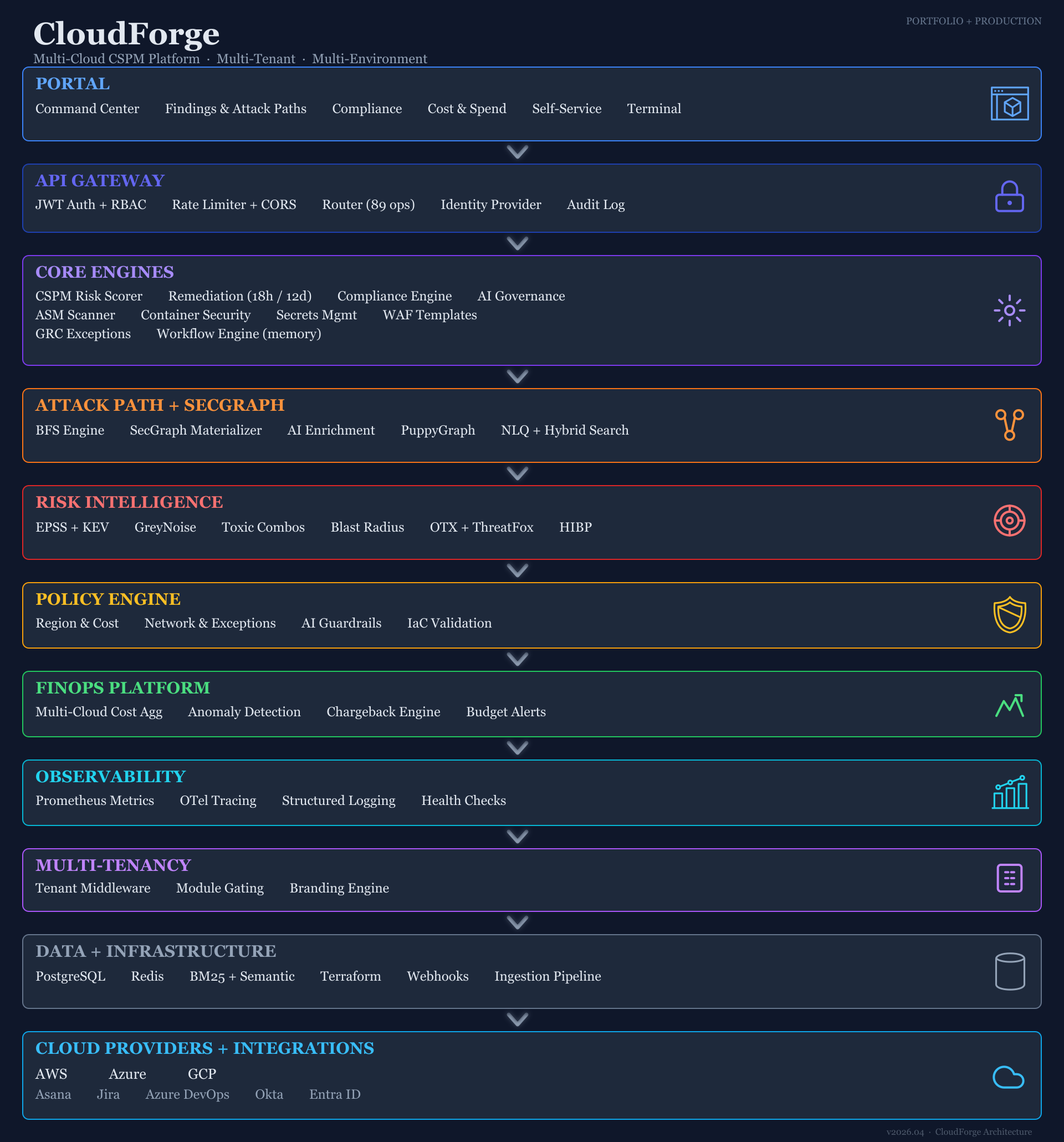

System Architecture
The main architecture diagram tracks the current portfolio implementation: posture management, AI risk scoring, policy engine, remediation dispatcher, graph/security analysis, and multi-cloud provider integrations.
Attack Path + SecGraph Runtime
This detailed current-state diagram shows how findings materialize into secgraph data in PostgreSQL, how adjacency feeds the Go BFS attack-path engine, and where PuppyGraph remains optional rather than runtime-critical.

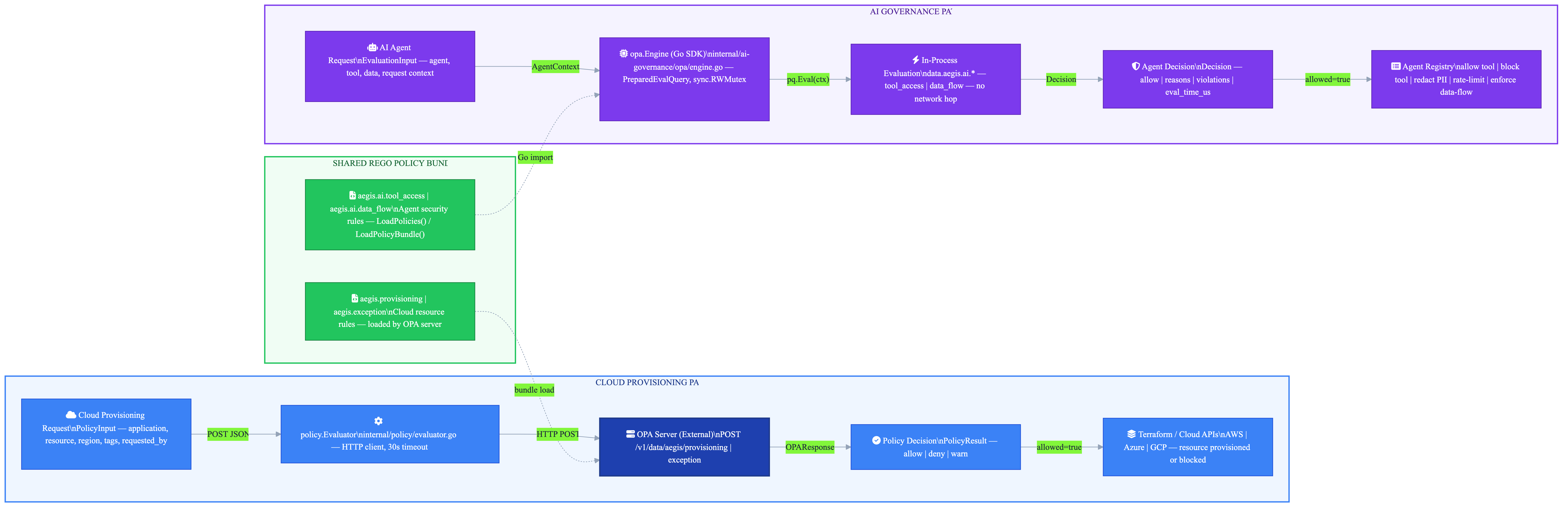

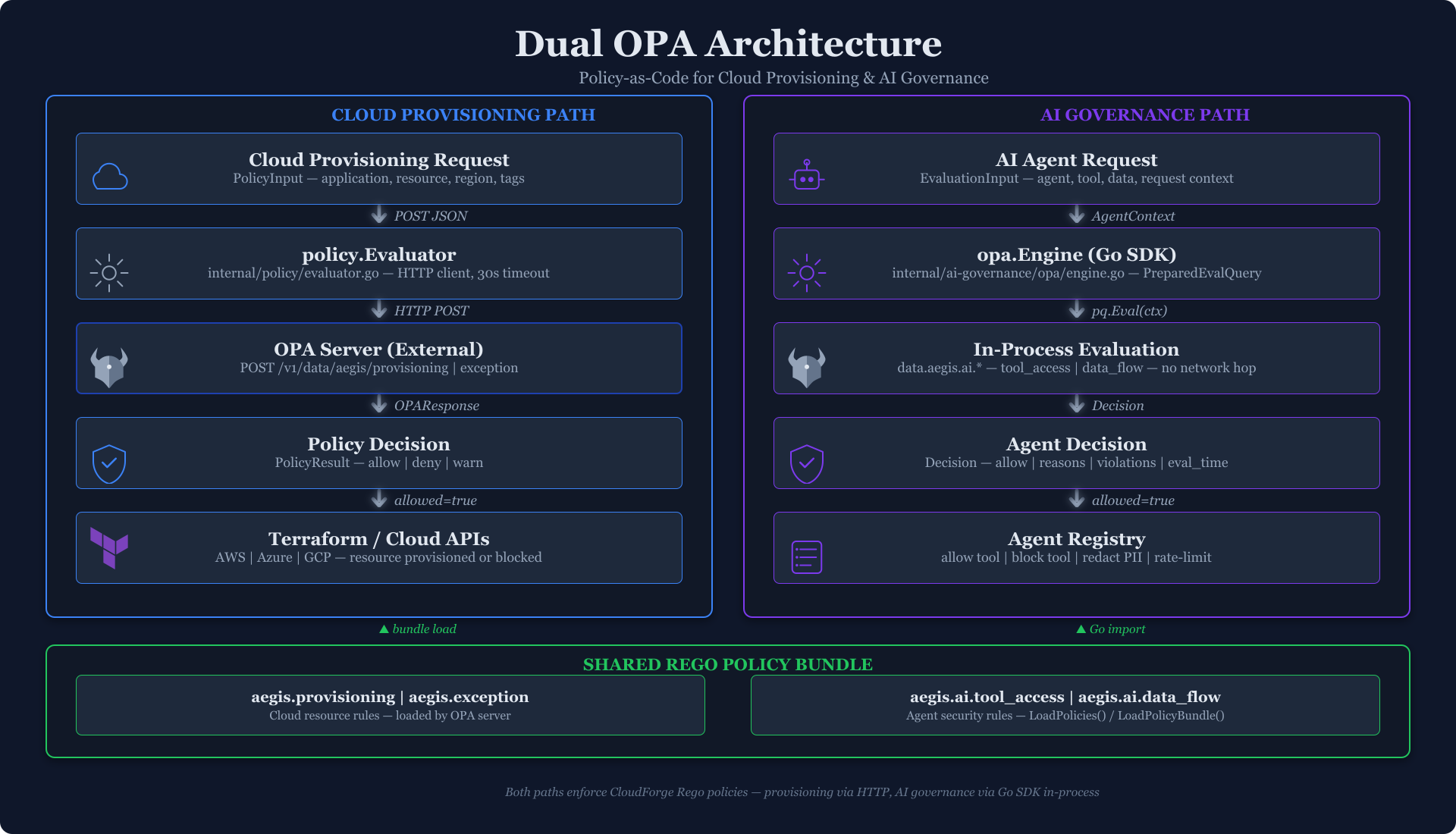

Dual-OPA Architecture
Cloud provisioning uses an external OPA server (HTTP POST), while AI governance uses an embedded OPA Go SDK (in-process). Both load from a shared Rego policy bundle.

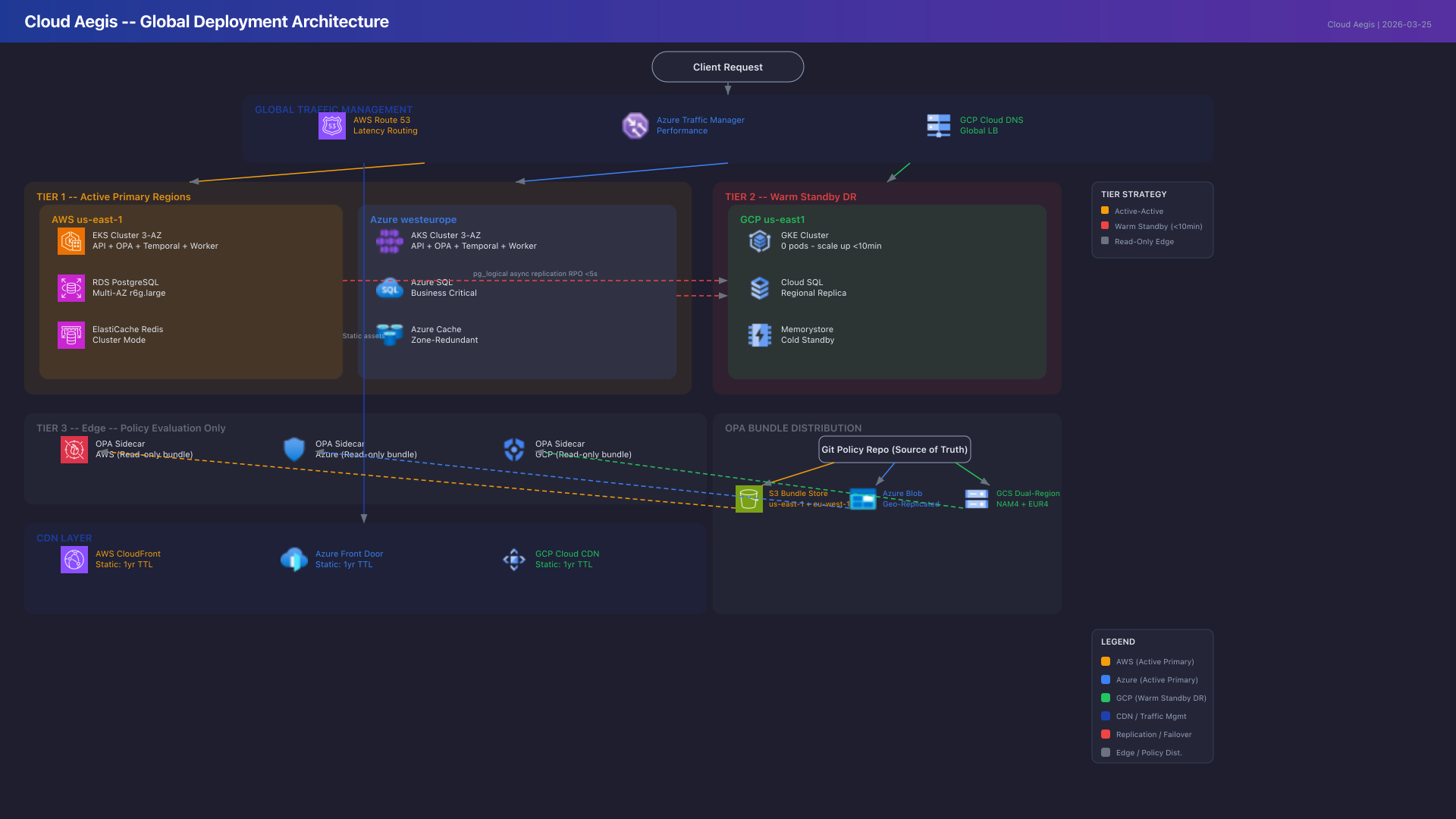

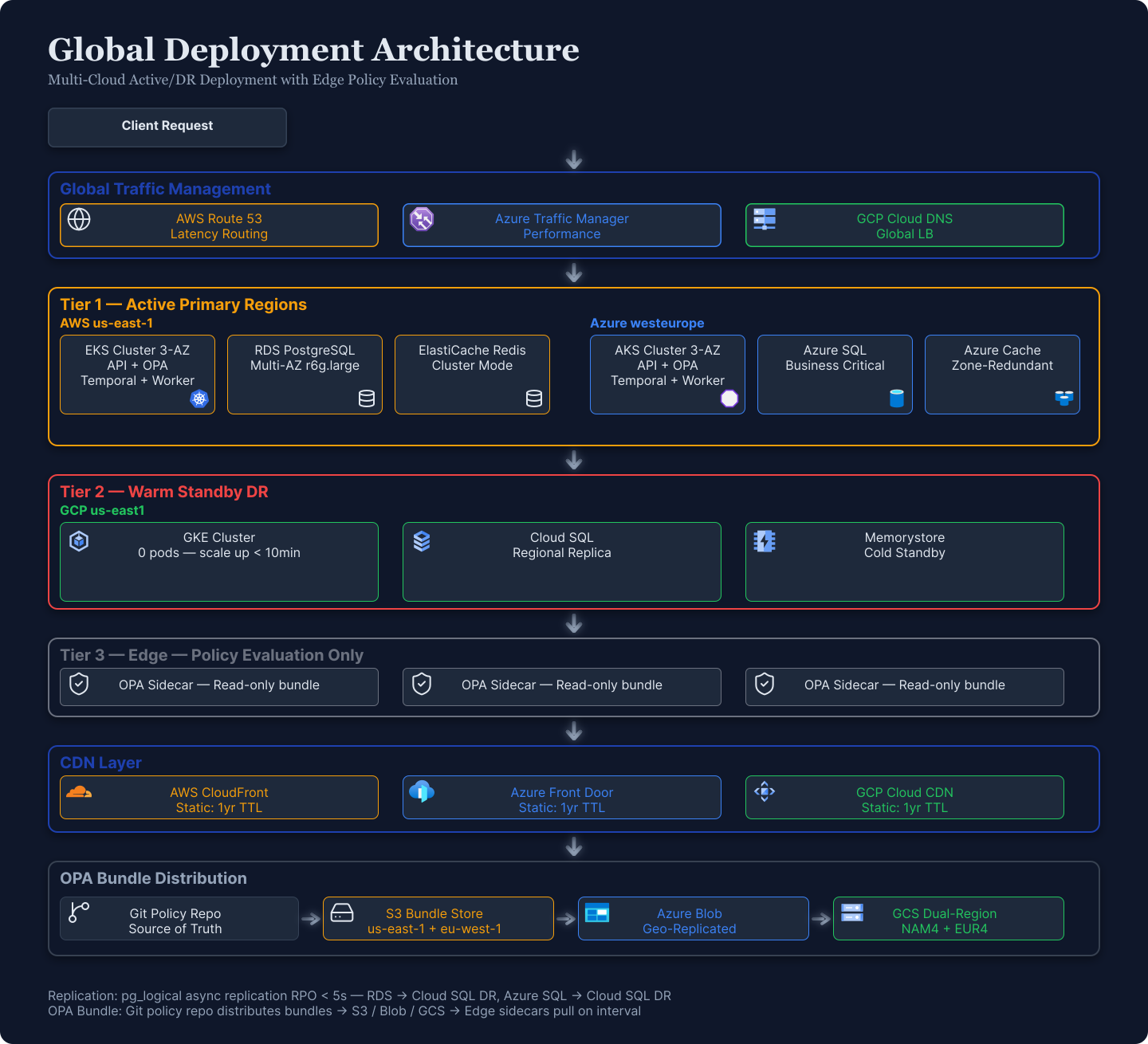

Global Deployment
Reference architecture for a self-managed enterprise rollout with multi-region DR, edge policy evaluation, and cross-cloud failover.

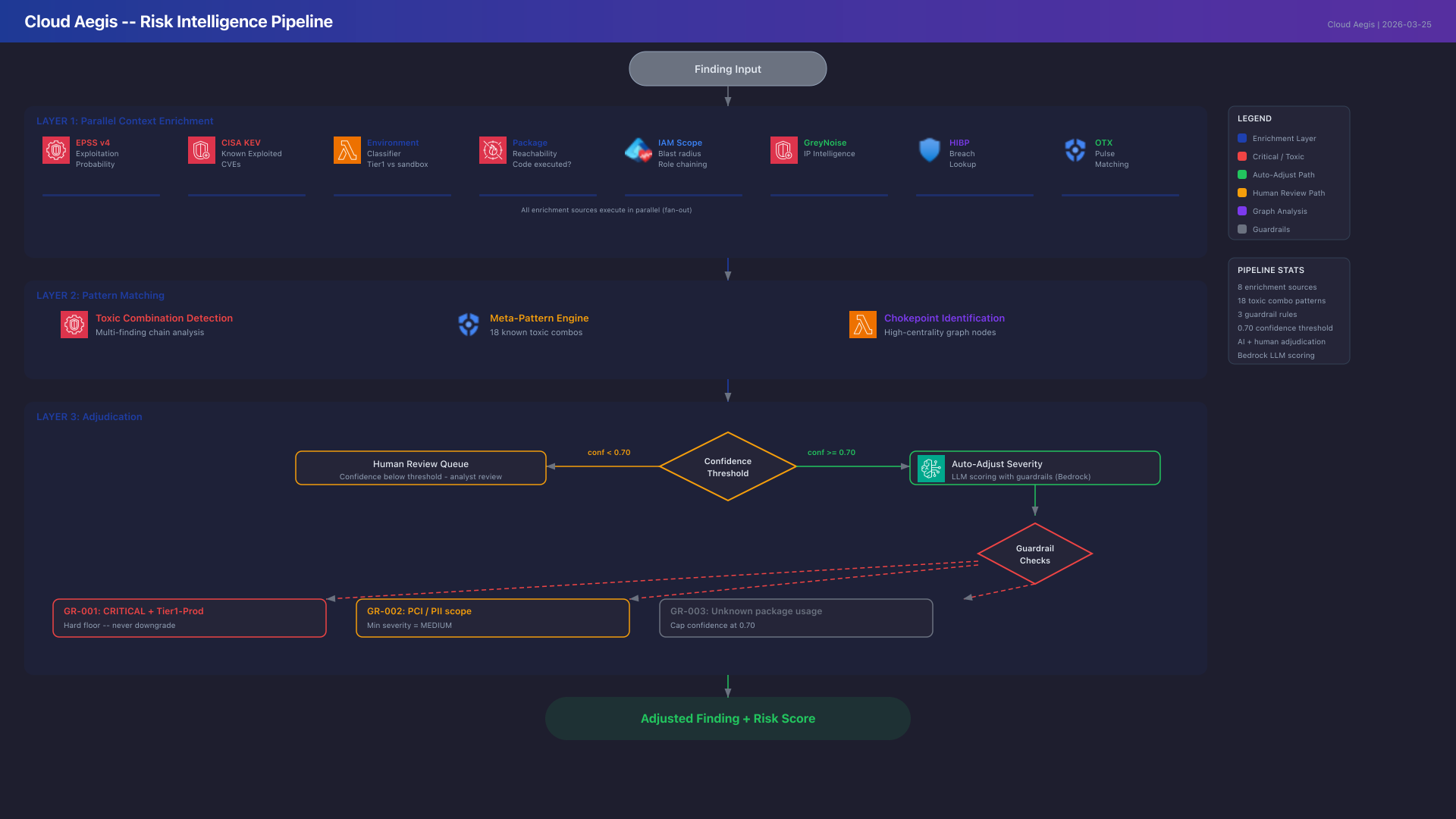

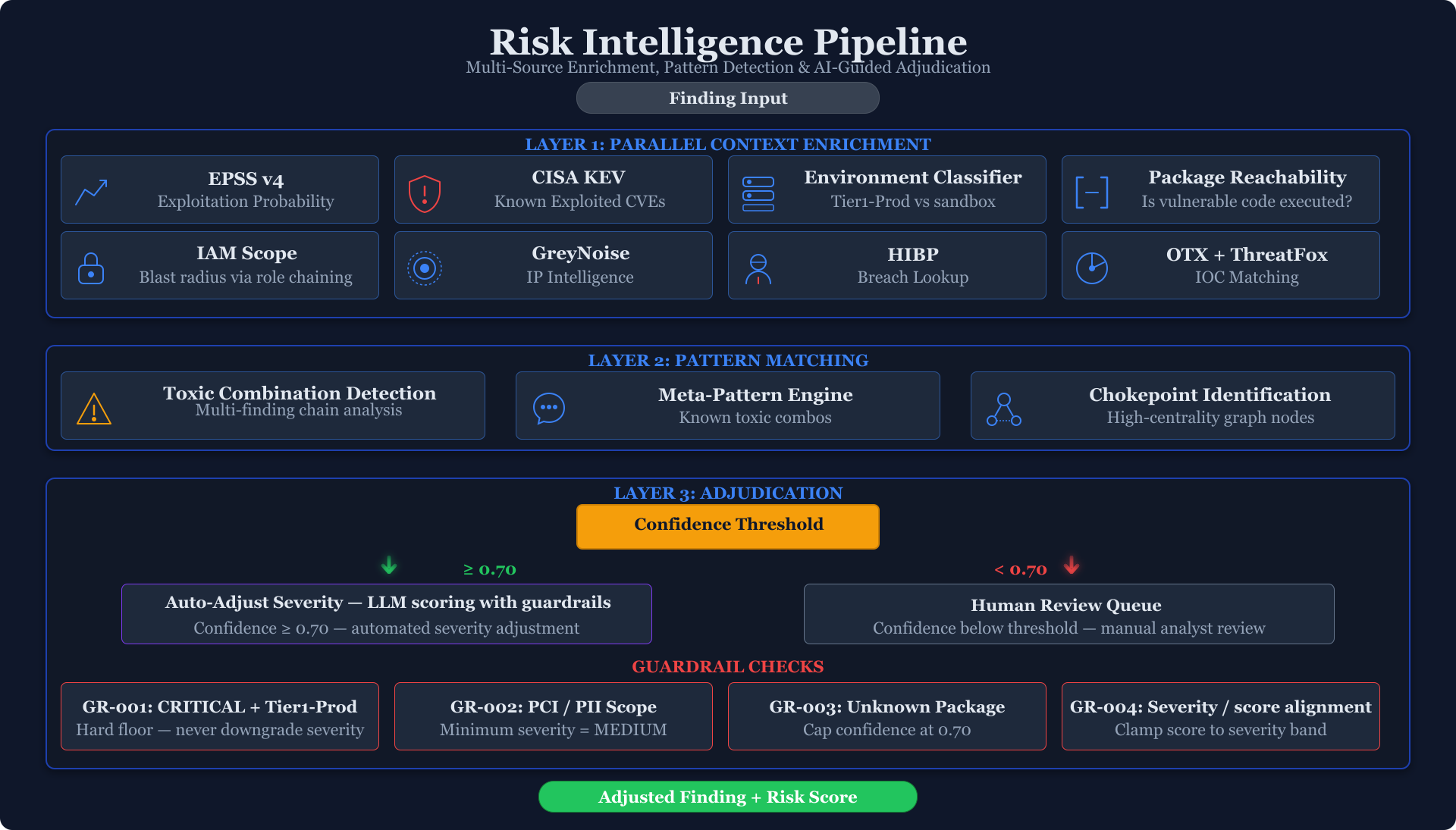

Risk Intelligence Pipeline
Current risk scoring pipeline: threat intel enrichment, contextual scoring, guardrails, and output to dashboards and ticketing.
Mermaid Source Diagrams
The following diagrams are rendered from Mermaid source files. Click to view full-size.
| Diagram | Description |
|---|---|
| Compliance Deployment Models | Enterprise compliance reference model |
| Cross-Cloud Failover | 4-phase failover sequence (detection → DB promotion → compute → DNS) |
| Deduplication Algorithm | SHA-256 keyed dedup with TTL eviction and rule equivalence mapping |
| Failover Sequence | Self-managed DR failover reference sequence |
| IaC Deploy Pipeline | Terraform/conftest CI/CD flow |
| Remediation Dispatcher Flow | Automated remediation routing |
| Restore Dependency DAG | 7-step restore ordering with dependency graph (DB → Redis/OPA → K8s → Temporal → Secrets → DNS) |
Runbook Diagrams
Operational procedure visualizations embedded in their respective runbooks.
| Diagram | Description |
|---|---|
| Incident Response | Severity triage, escalation, containment, resolution |
| Performance Troubleshooting | Symptom diagnosis decision tree |
| Secrets Rotation | Generate, deploy dual-key, validate, revoke |
| FinOps Budget Alerts | Threshold monitoring, alert routing, remediation |
